HSL-HB01-0050

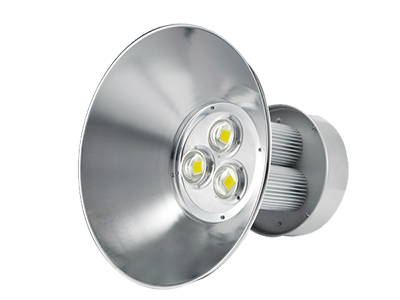

50W LED HighBay

Model No. HSL-HB01-0050

Optical Parameters
Led Source COB
CCT2800-6500K
Lens TypePC
Lumens4750LM ±5%
Beam Angle 60/90/120°
CRIRa>80
Mechanical Paramters
Installation methodEmbedded/Suspended
Light sizeΦ50*H97.5mm
Colour of Lamp ShellSliver
MaterialAluminium Alloy
Net Weight 4.6Kg
IP GradeIP66
Electrical Parameters
Lamp Power 50W
Input VoltageAC100-270V
Working Voltage DC 40-50V
Working Current300mA±5%
PF0.95
Lamp Efficiency≥88%
Working Environment
Adaptable Environment-20°C to 55°C
Lamp Working Temp.≤80°C
Life Span> 30,000 Hrs

Notes:

  • This Product Specification contains data about typical performance at nominal power. Actual values may depend on ballast and applications. Complies with (CE), Low Voltage (CE), WEEE and RoHS Directive.
  • Data is based upon tests performed by HS Lights in a controlled environment and is representative of relative performance at the relevant nominal power/voltage (e.g. 110/240/415). Actual performance can vary depending on operating conditions.
  • Data is subject to change without notice.
